Introduction

In today’s highly advanced manufacturing landscape—where CNC machining, additive manufacturing, and automated production lines are rapidly evolving—the sand casting procedure remains one of the most widely used and trusted metal forming processes worldwide.

According to industry reports, sand casting accounts for over 60% of all metal casting production globally, especially in sectors like automotive, heavy machinery, and infrastructure. Its adaptability to complex geometries, wide material compatibility, and low tooling cost make it indispensable for both prototyping and large-scale production.

If you are exploring sourcing options or evaluating manufacturing methods, understanding the sand casting procedure steps is essential. It not only helps in cost control but also improves communication with suppliers and ensures product quality meets engineering requirements.

Overview of Sand Casting Procedure

The sand casting procedure is a manufacturing process in which molten metal is poured into a sand mold cavity and allowed to solidify into the desired shape.

The process involves several sequential steps:

• Pattern creation
• Mold preparation
• Core placement
• Metal melting and pouring
• Cooling and solidification
• Shakeout and finishing

Each step plays a critical role in determining the final casting quality.

Sand Casting Procedure Steps Explained in Detail

Pattern Making in Sand Casting Procedure

Purpose of Pattern Design

A pattern is a physical model used to form the mold cavity. It is typically made slightly larger than the final product to compensate for shrinkage during cooling.

Patterns can be made from wood, plastic, aluminum, or steel depending on production volume and precision requirements.

Allowances in Pattern Making

Pattern design includes:

• Shrinkage allowance (typically 1–3%)
• Machining allowance
• Draft angles for easy removal

These considerations ensure dimensional accuracy and manufacturability.

Mold Preparation in Sand Casting Procedure

Sand Composition and Properties

Molding sand typically consists of:

• 85–95% silica sand
• 5–10% clay (binder)
• 2–5% water

This mixture provides:

• Strength to hold shape
• Permeability for gas escape
• Refractoriness to withstand high temperatures

Mold Formation Process

The sand is packed around the pattern in a molding box. Once compacted, the pattern is removed, leaving a cavity.

This cavity defines the external geometry of the casting.

Core Making for Internal Structures

Role of Cores in Sand Casting Procedure

Cores are used to create hollow sections or internal cavities in castings.

They are made from specially bonded sand mixtures to ensure strength during pouring.

Core Placement Accuracy

Proper positioning of cores is critical. Misalignment can result in dimensional defects or weak structures.

Gating System Design

Function of Gating System

The gating system controls how molten metal flows into the mold. It includes:

• Sprue
• Runner
• Gate

A well-designed gating system minimizes turbulence and prevents defects.

Risers and Feeding Systems

Risers act as reservoirs of molten metal to compensate for shrinkage during solidification.

This ensures the casting remains dense and free of voids.

Metal Melting and Pouring

Furnace Types and Temperature Control

Common furnaces include:

• Induction furnaces
• Electric arc furnaces
• Cupola furnaces

Temperature ranges vary by material:

• Aluminum: 660–750°C
• Cast iron: 1150–1300°C
• Steel: 1500–1600°C

Precise temperature control ensures proper fluidity and reduces defects.

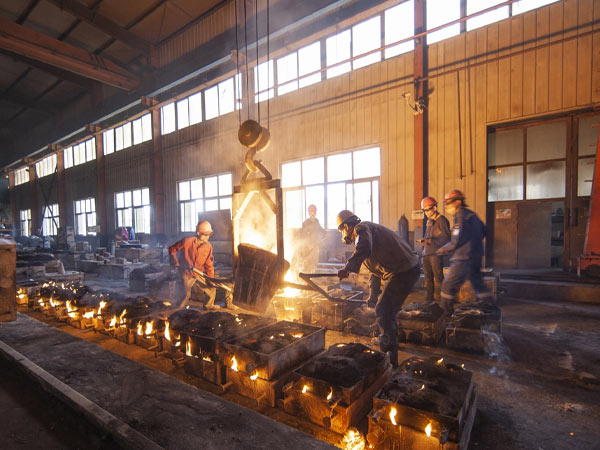

Pouring Techniques

Molten metal must be poured smoothly to avoid:

• Air entrapment
• Oxidation
• Turbulence

Proper pouring improves casting integrity.

Cooling and Solidification Behavior

Solidification Dynamics

Cooling rate influences:

• Grain structure
• Mechanical strength
• Internal stress

Slow cooling results in coarse grains, while rapid cooling produces finer microstructures.

Directional Solidification

Engineers design molds to ensure metal solidifies progressively from one end to another, reducing shrinkage defects.

Shakeout and Casting Extraction

Mold Breakdown Process

After solidification, the sand mold is broken to remove the casting. This is known as shakeout.

The sand can often be recycled after processing.

Cleaning, Fettling, and Finishing

Removal of Excess Material

Gates, risers, and flash are removed using cutting or grinding.

Surface Treatment

Common finishing processes include:

• Shot blasting
• Sandblasting
• Machining

These steps improve surface quality and dimensional accuracy.

Key Process Parameters in Sand Casting Procedure

Parameter	Typical Value Range	Impact on Casting Quality
Pouring Temperature	660–1600°C	Affects flow and defect formation
Sand Grain Size	0.1–1 mm	Determines surface finish
Moisture Content	2–8%	Influences mold strength
Cooling Rate	Variable	Controls microstructure
Shrinkage Allowance	1–3%	Ensures dimensional accuracy

Advantages of Sand Casting Procedure

High Versatility

The process supports a wide range of metals, including iron, steel, aluminum, and copper alloys.

Cost Efficiency

Tooling costs are relatively low, making it suitable for both small and large production runs.

Scalability

Sand casting can produce components ranging from a few grams to several tons.

Limitations of Sand Casting Procedure

Surface Roughness

Compared to precision casting methods, sand casting produces rougher surfaces.

Lower Dimensional Accuracy

Tolerances are wider, requiring secondary machining in some cases.

Sand Casting vs Other Casting Methods

Sand Casting vs Die Casting

• Sand casting: lower cost, flexible
• Die casting: high precision, high volume

Sand Casting vs Investment Casting

• Sand casting: suitable for large parts
• Investment casting: superior surface finish

Sand Casting vs Permanent Mold Casting

• Sand molds are disposable
• Permanent molds improve consistency

Industry Standards and Quality Control

Common Standards

• ASTM A48: Gray iron castings
• ASTM A27: Steel castings
• ISO 8062: Dimensional tolerances

These standards ensure consistency and reliability across global supply chains.

Inspection Methods

Quality control includes:

• Visual inspection
• Ultrasonic testing
• X-ray inspection
• Dimensional measurement

Common Defects and Prevention

Gas Porosity

Caused by trapped gases. Prevented by improving mold permeability and venting.

Shrinkage Cavities

Reduced by proper riser design and directional solidification.

Sand Inclusion

Avoided through proper mold preparation and cleaning.

Real-World Case Studies

Automotive Engine Block Production

Sand casting is widely used for engine blocks due to its ability to produce complex internal geometries.

Manufacturers achieve:

• High strength
• Cost efficiency
• Scalable production

Heavy Machinery Components

Large components like pump housings and valve bodies are produced using sand casting due to size flexibility.

Emerging Trends in Sand Casting

Automation in Foundries

Modern foundries use robotic systems for:

• Mold handling
• Pouring
• Finishing

This improves efficiency and consistency.

Sustainable Casting Practices

Recycling sand and reducing emissions are key focus areas in modern manufacturing.

FAQ

What are the steps in the sand casting procedure?

The process includes pattern making, mold preparation, core placement, melting, pouring, cooling, shakeout, and finishing. Each step ensures casting quality and accuracy.

Why is sand casting widely used?

It is cost-effective, flexible, and suitable for a wide range of metals and sizes. It is ideal for both prototypes and large-scale production.

How accurate is sand casting?

It offers moderate accuracy compared to other casting methods. Secondary machining is often required for tight tolerances.

What industries use sand casting?

Industries include automotive, construction, energy, and heavy machinery manufacturing.

Can sand casting produce complex shapes?

Yes, especially with the use of cores, sand casting can create intricate internal and external geometries.

Conclusion

The sand casting procedure continues to be a foundational manufacturing method due to its flexibility, cost efficiency, and wide applicability. By understanding each step and the factors influencing quality, manufacturers and buyers can make informed decisions that improve performance and reduce costs.

Whether you are sourcing components or optimizing production, mastering the sand casting procedure steps is essential for achieving consistent and high-quality results in modern industry.
