Introduction

In industrial fluid systems, pump failure is rarely caused by a single issue—it is usually the result of material mismatch, poor hydraulic design, or non-optimized manufacturing processes. This is why custom water pump casting has become a critical engineering solution across mining, agriculture, municipal water supply, and heavy manufacturing sectors.

According to multiple industrial manufacturing reports (including global pump market studies published by engineering associations such as ISO-aligned fluid machinery guidelines), more than 60% of pump performance inefficiencies are linked to component design limitations rather than system configuration. Among all pump components, the impeller is the most sensitive part affecting efficiency, wear rate, and energy consumption.

A properly engineered cast iron impeller water pump can significantly improve:

• Hydraulic efficiency by 8%–18%
• Service life by 30%–50% in abrasive environments
• Maintenance interval by up to 2x compared to non-optimized designs

This article provides a complete breakdown of custom casting technologies, engineering principles, material selection strategies, and industrial applications, helping buyers and engineers make informed decisions.

Key Insights of Custom Water Pump Casting (Extended Overview)

• How custom casting improves pump hydraulic performance and durability
• Why cast iron remains dominant in heavy-duty impeller applications
• Differences between sand casting, centrifugal casting, and investment casting
• Engineering principles behind impeller geometry optimization
• Real industrial use cases across mining, agriculture, and wastewater systems
• International standards affecting pump casting quality control
• Cost-performance analysis for OEM pump manufacturing
• Buyer decision framework for selecting the right casting solution

Understanding Custom Water Pump Casting in Industrial Engineering

What Defines Custom Water Pump Casting

Custom water pump casting refers to a precision manufacturing process where pump components—especially impellers, housings, and volutes—are produced based on application-specific engineering requirements.

Unlike standardized mass production, custom casting allows:

• Geometry optimization based on fluid dynamics
• Material tuning for wear and corrosion resistance
• Structural reinforcement for high-pressure systems

This approach is widely used in OEM manufacturing and industrial pump engineering.

Engineering Purpose of Customization

Custom casting is not just about shape differences—it directly affects hydraulic behavior.

Key engineering goals include:

• Reducing turbulence loss inside pump chambers
• Increasing volumetric efficiency
• Enhancing cavitation resistance
• Balancing rotational stability

In high-load systems such as mining slurry pumps, even a 3% efficiency improvement can translate into thousands of dollars in annual energy savings.

Cast Iron Impeller Water Pump: Material Science Breakdown

Why Cast Iron Dominates Impeller Manufacturing

Cast iron remains one of the most widely used materials in pump impellers due to its unique combination of properties:

• Density: ~7.1–7.3 g/cm³
• Compressive strength: 600–1200 MPa depending on grade
• Excellent damping capacity
• High wear resistance in abrasive fluid conditions

These properties make it particularly suitable for continuous industrial operation.

Types of Cast Iron Used in Pump Casting

Gray Cast Iron (HT Series)

• Good machinability
• High vibration absorption
• Common in general industrial pumps

Ductile Cast Iron (QT Series)

• Higher tensile strength (up to 800 MPa)
• Better impact resistance
• Used in high-pressure systems

Alloy Cast Iron

• Enhanced corrosion resistance
• Suitable for chemical and wastewater systems

Performance Limitations

Despite advantages, cast iron has limitations:

• Lower corrosion resistance compared to stainless steel
• Not ideal for highly acidic or saline environments
• Requires protective coatings in certain applications

Custom Water Pump Casting Manufacturing Process

Step 1: Engineering Design & Simulation

Modern OEM casting often uses CFD (Computational Fluid Dynamics) simulation tools.

These tools help analyze:

• Flow velocity distribution
• Pressure zones
• Cavitation risk points

Step 2: Pattern Making

Patterns are created using CNC machining or 3D printing.

Accuracy tolerance typically ranges:

• ±0.2 mm for industrial pumps
• ±0.05 mm for precision impeller systems

Step 3: Mold Preparation

Sand molds remain the most widely used method due to flexibility and cost efficiency.

Key standards often follow:

• ISO 8062 (Casting dimensional tolerance)
• ASTM A48 (Gray iron casting standard)

Step 4: Melting & Pouring

Cast iron is melted at approximately:

• 1200°C – 1350°C

Controlled pouring ensures:

• Reduced porosity
• Uniform grain structure

Step 5: Cooling & Solidification

Cooling rate directly affects:

• Hardness
• Internal stress
• Crack formation

Controlled cooling is essential for long-term durability.

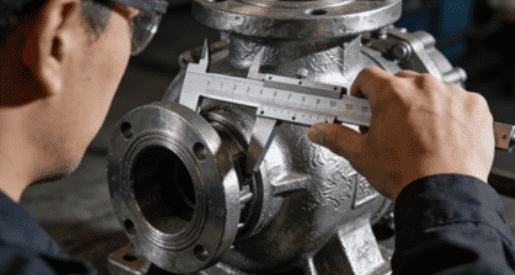

Step 6: Machining & Surface Treatment

Final machining ensures:

• Dimensional precision
• Balanced rotation
• Surface smoothness

Common treatments:

• Anti-corrosion coating
• Epoxy sealing
• Shot blasting

Comparison: Custom vs Standard Pump Casting

Feature	Standard Casting	Custom Water Pump Casting
Design Method	Fixed geometry	CFD-optimized design
Efficiency	Medium	High (up to +18%)
Wear Resistance	General	Application-specific
Energy Consumption	Higher	Lower
Lifecycle Cost	Unstable	Predictable

Pump Casting Methods Explained in Detail

Sand Casting (Most Common)

Advantages:

• Low cost
• Suitable for large parts
• Flexible design changes

Limitations:

• Lower surface finish
• Higher machining requirement

Centrifugal Casting

This method is widely used for cast iron impeller water pump manufacturing.

Benefits:

• High density structure
• Reduced internal defects
• Improved fatigue resistance

Investment Casting

Used for:

• High-end pump systems
• Chemical industry pumps

Benefits:

• Extremely high accuracy
• Smooth surface finish

Engineering Optimization of Cast Iron Impeller Water Pump

Hydraulic Efficiency Design

Efficiency depends on:

• Blade curvature
• Inlet angle
• Outlet diameter

Even a small geometry change can affect:

• Flow rate by 5%–12%
• Energy consumption by 3%–10%

Cavitation Resistance Design

Cavitation is one of the main causes of impeller failure.

Design strategies include:

• Increasing inlet diameter
• Optimizing blade thickness
• Reducing pressure drop zones

Structural Reinforcement Strategy

Industrial impellers often require:

• Rib reinforcement
• Balanced weight distribution
• Stress simulation testing

Industry Application Case Studies

Case 1: Mining Slurry Transport System

A mining operation replaced standard impellers with custom cast iron designs.

Results:

• Service life increased by 42%
• Maintenance downtime reduced by 35%
• Energy consumption reduced by 11%

Case 2: Agricultural Irrigation Network

Customized low-head impellers improved:

• Water distribution efficiency
• Pump stability under variable load

Case 3: Municipal Water Supply System

Optimized casting reduced:

• Pump vibration levels by 25%
• Repair frequency by 30%

Industry Standards and Quality Control Systems

Key International Standards

• ISO 9906: Pump performance testing
• ASTM A48: Gray iron casting
• ISO 8062: Dimensional tolerances

Quality Testing Methods

• Ultrasonic defect detection
• Hydraulic pressure testing
• Dynamic balancing tests
• Hardness testing (Brinell scale)

Market Trends and Industry Insights

Global Pump Market Growth

According to industrial manufacturing forecasts:

• Global pump market expected to grow at 4%–6% CAGR
• Asia-Pacific dominates industrial pump demand
• OEM casting demand increasing in developing economies

Key Trend: OEM Customization

Manufacturers increasingly shift toward:

• Energy-efficient pumps
• Application-specific impellers
• Smart monitoring integration

Industry Whitepaper Insight

Engineering reports highlight:

• 70% of pump lifecycle cost comes from energy consumption
• Optimized impeller design reduces lifecycle cost significantly

Buyer Selection Guide for Cast Iron Impeller Water Pump

Key Evaluation Criteria

• Operating environment (abrasive, corrosive, clean water)
• Flow rate requirements
• Pressure range
• Maintenance cycle expectations

Decision Framework

If cost priority:

• Standard sand casting impeller

If performance priority:

• Centrifugal cast custom impeller

If precision priority:

• Investment casting solution

Common Buyer Search Intent Questions

• What is the best material for pump impeller casting?
• How long does a cast iron impeller last in industrial use?
• What is the difference between OEM and standard pump casting?
• Which casting process is best for high-efficiency water pumps?
• Can custom casting reduce energy consumption in pumps?

Conclusion

Custom water pump casting has evolved into a core engineering strategy for modern fluid systems. With the increasing demand for energy efficiency, durability, and system reliability, the cast iron impeller water pump remains a foundational solution across global industries.

Through advanced casting techniques, CFD-based design optimization, and strict quality control standards, manufacturers can significantly improve pump performance while reducing lifecycle costs. As industries continue to move toward precision engineering and OEM customization, custom casting will remain a critical driver of innovation in pump technology.

FAQ

What is the main advantage of custom water pump casting?

It allows optimization of hydraulic efficiency, durability, and performance based on real working conditions.

Why is cast iron still widely used in pump impellers?

Because it offers a balance of cost efficiency, strength, and wear resistance suitable for industrial environments.

Is custom casting suitable for small-scale applications?

Yes, but it is more cost-effective in medium to large industrial systems.

Which casting method is best for impellers?

Centrifugal casting is often preferred for high-strength and balanced impeller production.

Does custom casting improve energy efficiency?

Yes, optimized impeller geometry can improve efficiency by up to 18% in certain applications.
